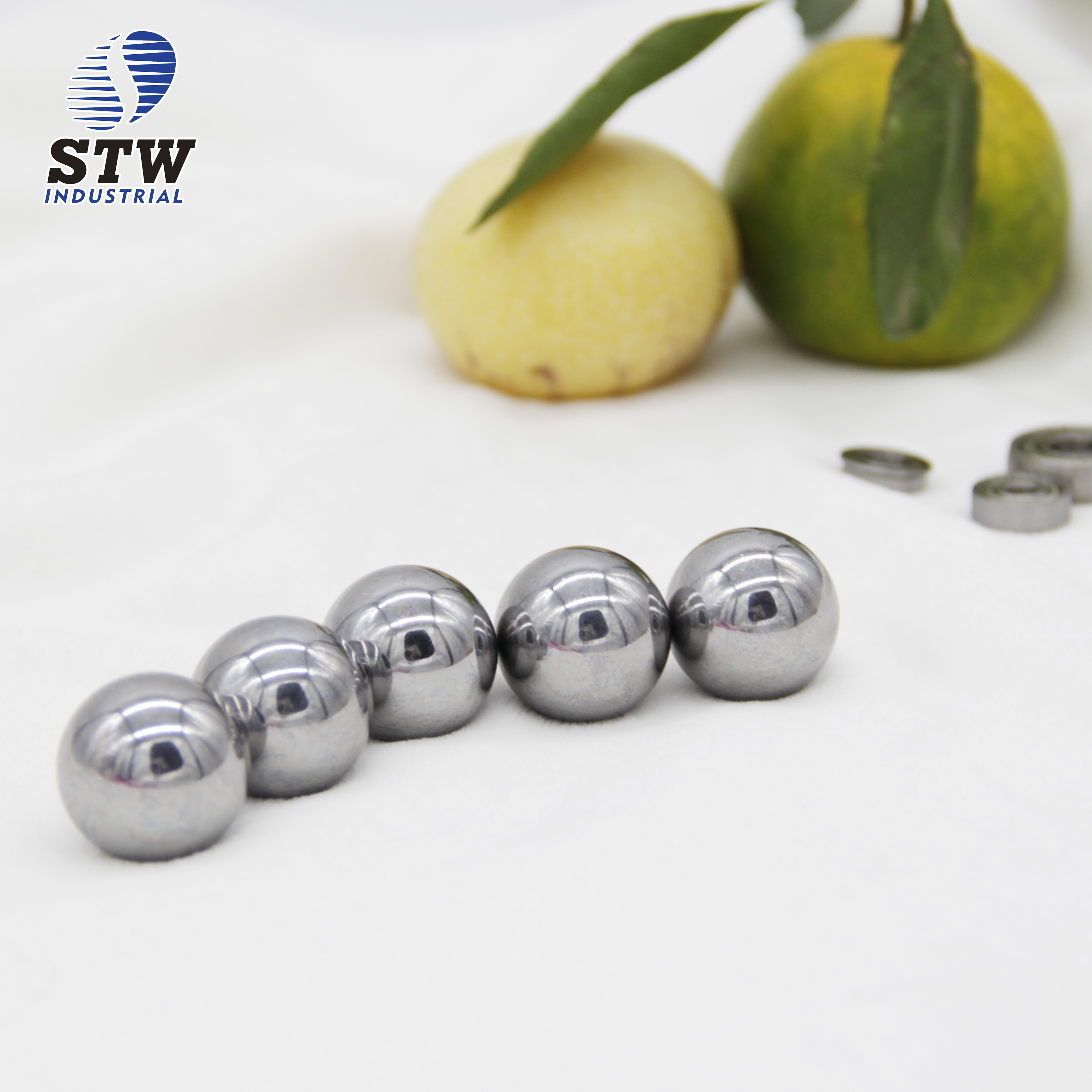

AISI304 5.5mm solid stainless steel ball
| SUHUA STEEL BALL | |
| Material: | AISI304 |
| Grade: | G10 G16 G20 G28 G40 G60 G100 G200 G500 G1000 |
| Size range: | 0.5mm-200mm |
| Hardness: | HRC25-39 |
| Surface: | Polished |
| Packing Condition: | Dry/oil |
| Density: | 7.972g/cm³ |
| Characteristic: | (a)Not hardenable austenitic inox, (b)Very good resistance to corrosion(apart of solforic and chloridric acid), much little magnetic. |
| Application: | Bearings, nail polish, perfume, chocolate grinding machine, coffee machine, medical equipment… |
Chemical composition:
| 304 | C% | Si% | Mn% | Cr% | Ni% | P% | S% | N% |
| Min. Max | --- 0.07 | --- 1.00 | --- 2.00 | 17.0 19.5 | 8.0 10.5 | --- 0.045 | --- 0.015 | --- 0.11 |
Ball Grade:
| Grade | Variation of ball diameter | Deviation from spherical form | Suface roughness | Variation of ball lot diameter | Nominal ball deviation tolerance |
| Vdws | △rSw | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
OUR FACTORY:
Our factory was established in 1986 which is call Huari steel ball Co.,Ltd, we are a professional manufacturer and supplier of steel balls and ball related products in China, we offer ball sizes from 0.5mm-200mm. Material of carbon, chrome, stainless, aluminum, brass and so on. We also offer bearing, ball retainer and stamping parts.
All the steel balls and bearings produced by HUARI are covering the production process by standards ISO 9001:2008.
Manufacturing process:
Raw material → Drawing → Heading → Flashing → Heat treatment
→ Grinding → Lapping1 → Lapping2 → Sorting → Packing

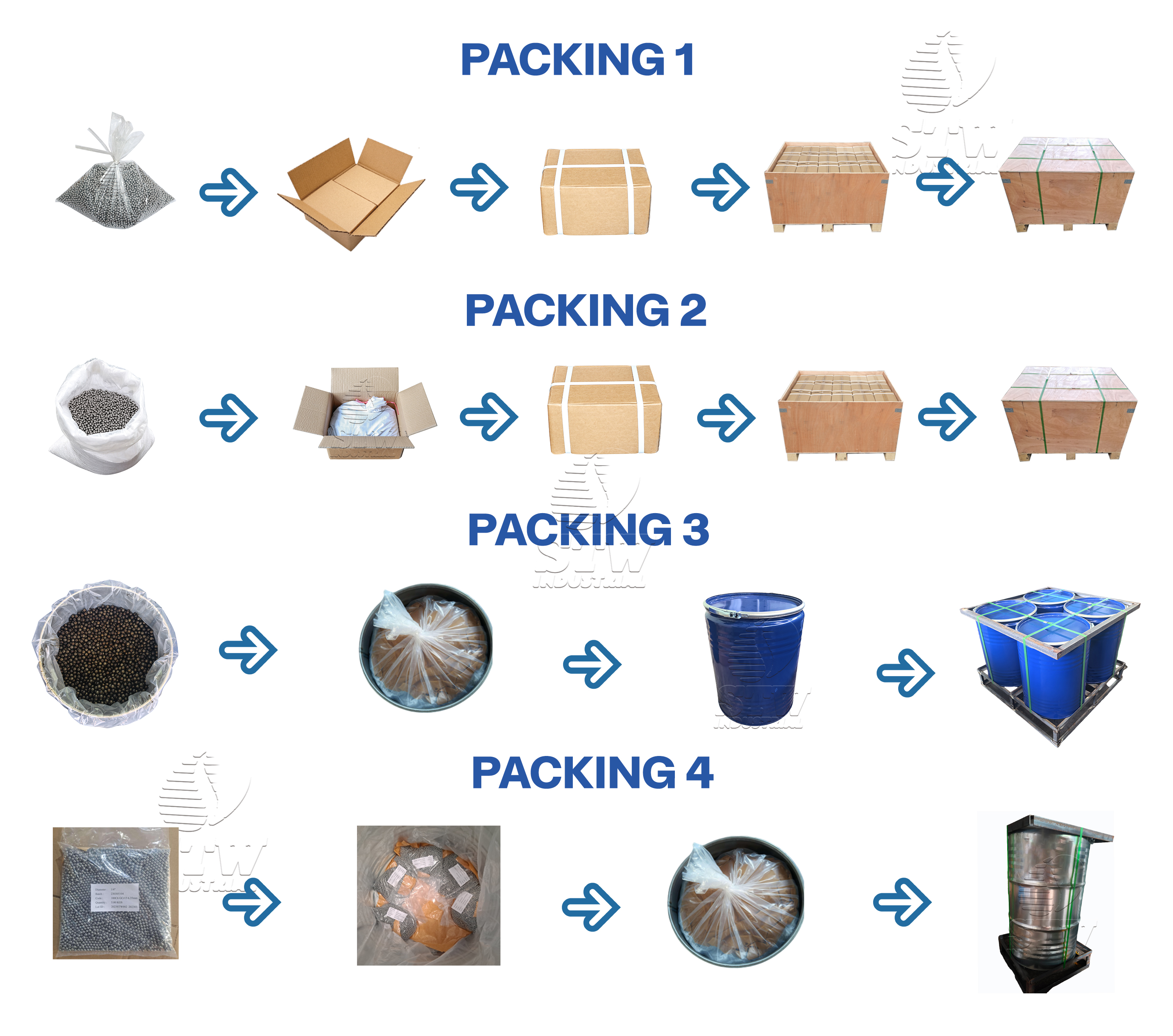

Packing & Delivery:
Type 1 : Plastic bag + box + carton + wooden pallet
Type 2 : Plastic bag + woven bag + carton + wooden pallet
Type 3 : Plastic bag + steel drum
Shipping way:
1.TNT 2.UPS 3.ocean shipping 4.air transportation
Other products:
Stainless steel ball
Chrome steel ball
Carbon steel ball
Aluminum ball
Brass/copper ball

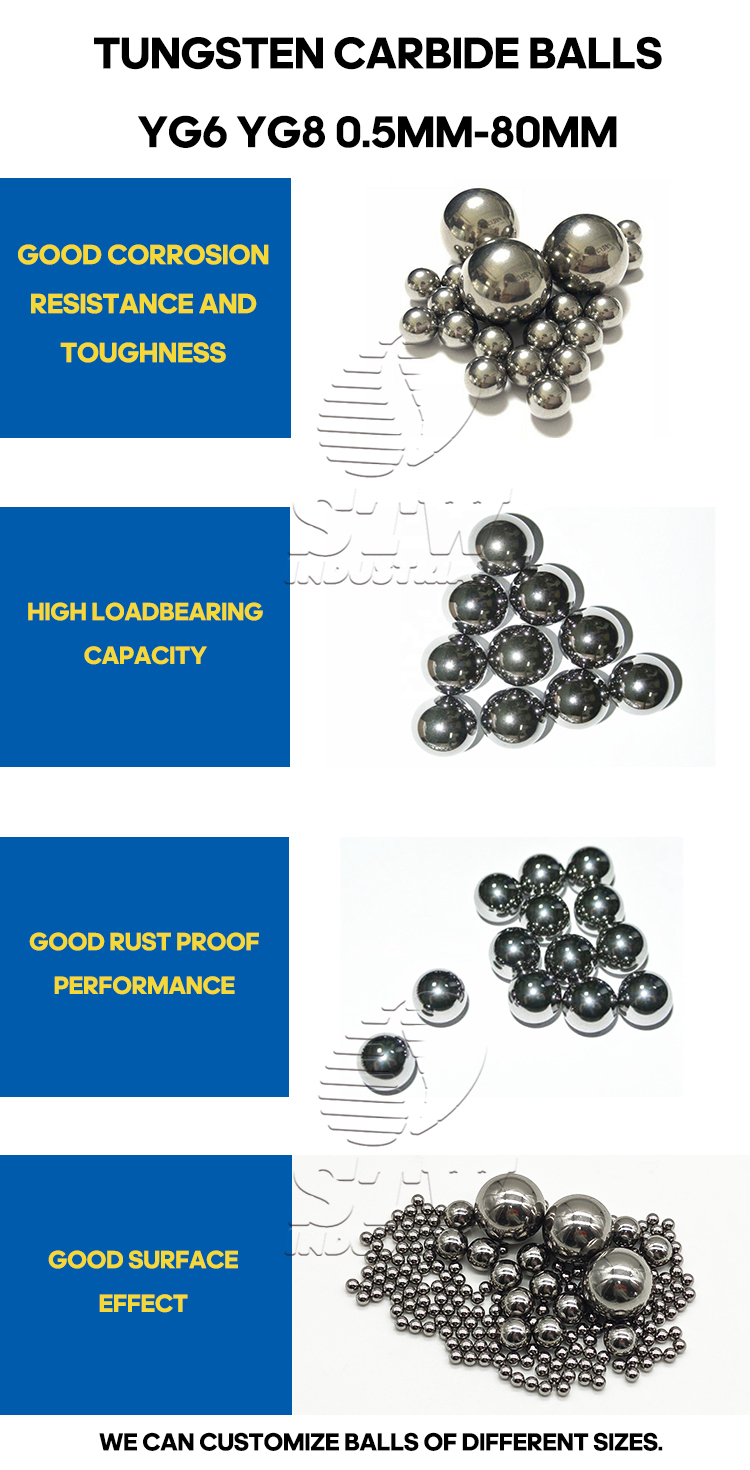

Tungsten carbide ball
Plastic ball
Gold/silver/zinc/tin/nickel plated steel ball
Half ball
Ball retainer
FAQ:
Q: Are you trading company or manufacturer ?
A:Our company is called Changzhou stw-industrial co,ltd,and there is a factory which called Huari,so we are both trading company and manufacter.
Q: How long is your delivery time?
A: Generally it is 7days,it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide free sample?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How many quantity will be packed in one carton or one pallet ?
A: 20 to 25 kg per carton, 1 ton per wooden pallet.
Welcome to send your inquiry to us.
