AISI304L has a higher corrosion resistance than AISI304. Stainless type 304 and 304L balls are capable of resisting corrosion by such agents as oxidizing solutions, most organic chemicals, food stuffs and sterilizing solutions. Applications include aerosol, sprayers, finger pump mechanisms, milk machine blenders, food processing equipment.

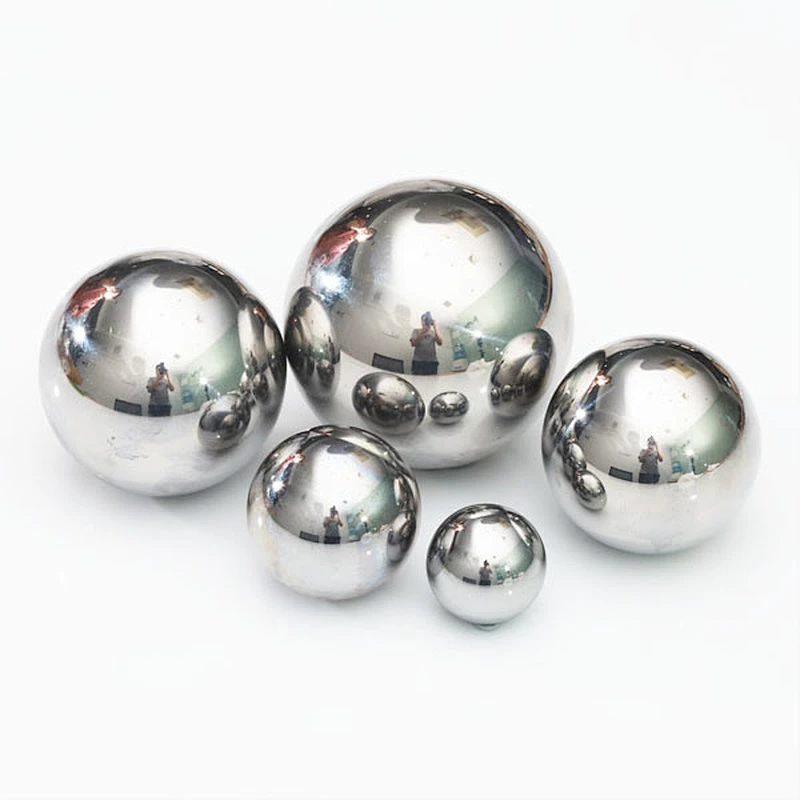

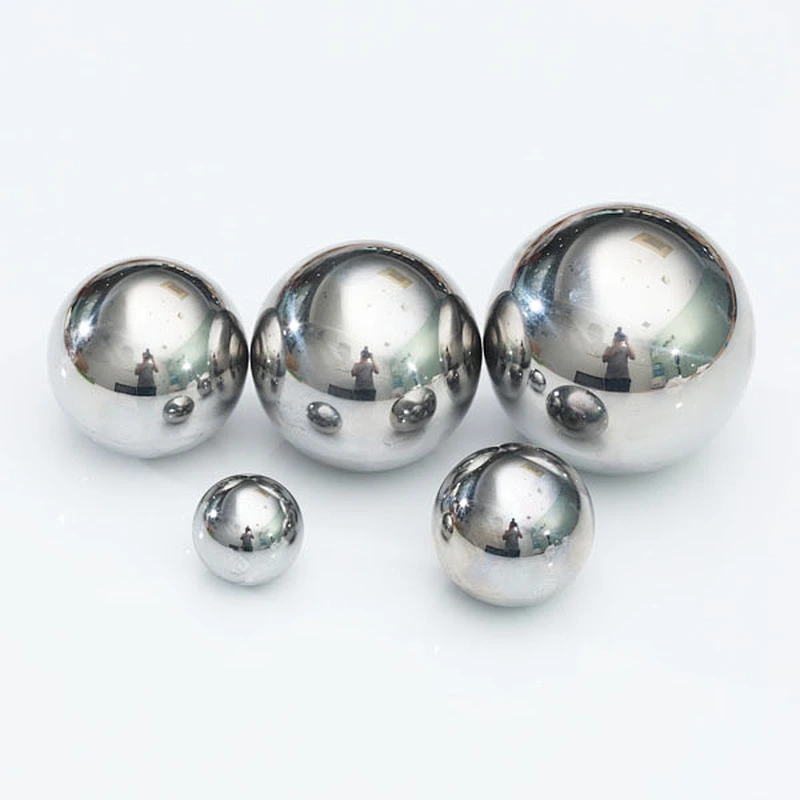

| 304L Stainless Steel Balls | ||||||||
| 1.Material | AISI 304L/ SUS 304L/ Wks 1.4306 | |||||||
| 2.Size Range | 1mm-180mm | |||||||
| 3.Grade | G40-1000 | |||||||
| 4.Hardness | 25-39HRC | |||||||
| 5.Characteristic | (a)Good resistance to corrosion (b)Apply in where material toughness and resistance to corrosion are more important than hardness (c)Good corrosion resistance in the food environment, oxidizing solutions and most organic chemicals (d)Material 304L has a higher corrosion resistance than 304 | |||||||
| 6.Magnetic | Much little | |||||||
| 7.Application | Valves, finger pumps, Aggressive applications without mechanical efforts | |||||||
| 8.Chemical composition | ||||||||
| C% | Si% | Mn% | Cr% | Ni% | P% | S% | N% | |
| min. | --- | --- | --- | 18.0 | 10.0 | --- | --- | --- |
| max. | 0.03 | 1.00 | 2.00 | 20.0 | 12 | 0.045 | 0.015 | 0.11 |
| 9.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||
| 10.Conditioning | dry or oiled | |||||||
| 11.Delivery time | Stock within a short time or 35 days. | |||||||
| China | Japan | U.S. | Germany | Hardness |
| 00Cr19Ni10 | SUS304L | AISI304L | 1.4307 | HRC 25-39 |
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Application Of Stainless Steel Balls | ||||
| AISI304, 304L, 316, 316L | strong anti-rust performance, can be in direct contact with neutral liquids. Special bearings, water pumps, valves, aerosols, dispensers, food machinery, medical, cosmetics and other fields. | |||
| AISI420, 420C, 440, 440C | precision bearings, auto parts, bicycles, mixers, slide rails, conveyor belts, skateboards, casters, valves, etc. | |||
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
