This is only austenitic steel for ball manufacture and can be non magnetic.
316L stainless steel ball has a lower carbon content than 316 stainless, which gives it even higher corrosion resistance than the excellent resistance of type 316. Applications for type 316L balls include Jewelry and medical uses.

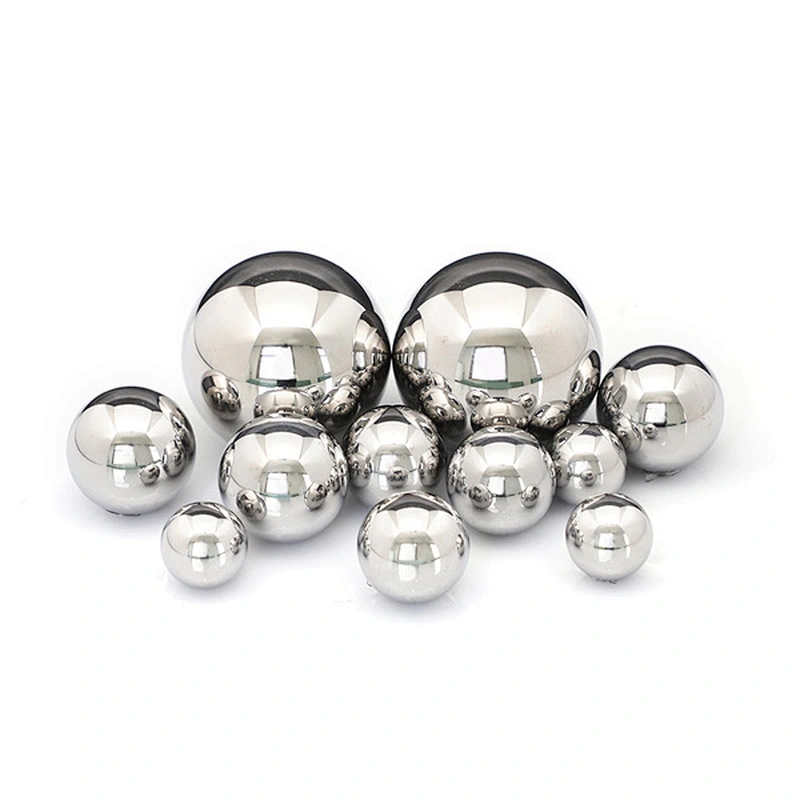

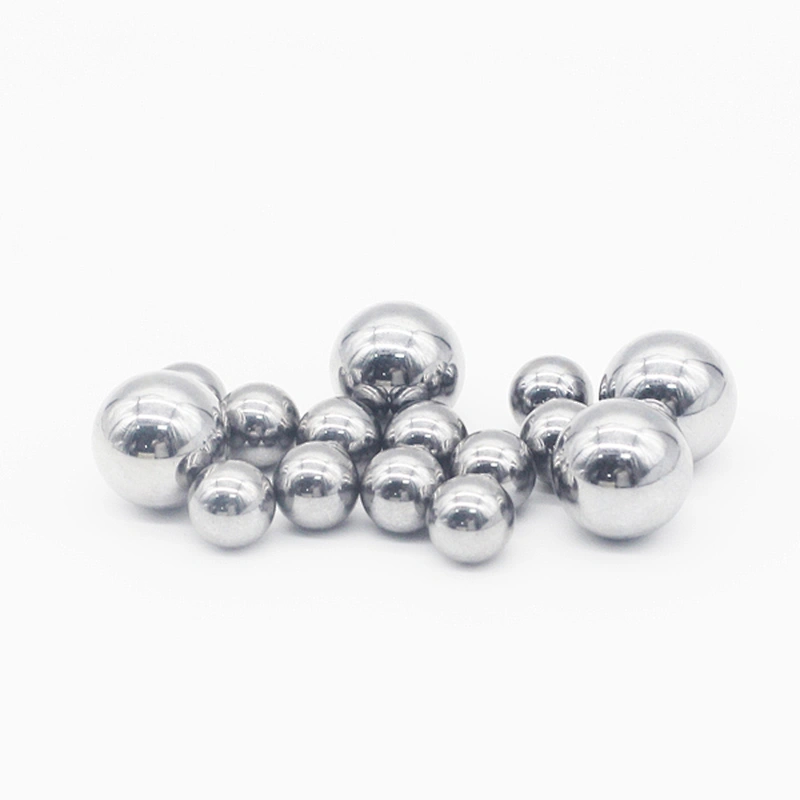

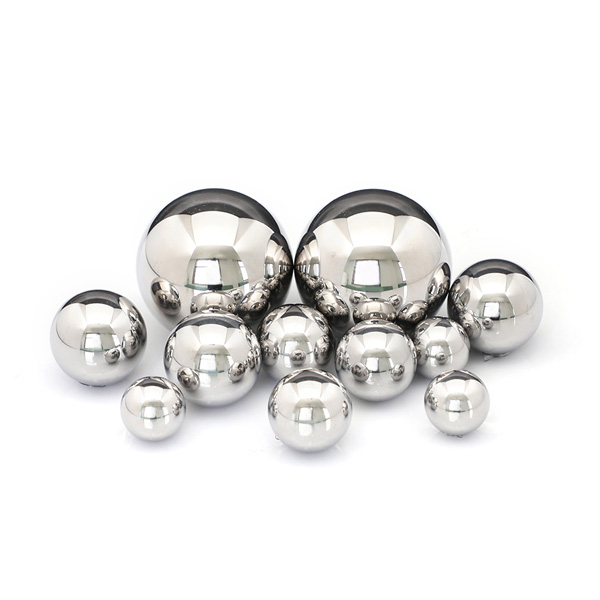

| 316L Stainless Steel Balls | ||||||||
| 1.Material | AISI 316L/ JIS SUS 316L/ Wks 1.4404 | |||||||
| 2.Size Range | 1mm-180mm | |||||||
| 3.Grade | G40-1000 | |||||||
| 4.Hardness | 25-39HRC | |||||||
| 5.Characteristic | (a)Excellent resistance to corrosion(apart of chloridric acids) (b)Not hardenable austenitic inox (c)Material 1.4404 has a higher corrosion resistance than material 1.4401 | |||||||
| 6.Magnetic | NO | |||||||
| 7.Application | Photographic chemicals, bleaches, dyes, inks and nitric aicds Vggressive applications without mechanical efforts | |||||||
| 8.Chemical composition | ||||||||
| C% | Si% | Mn% | Cr% | Ni% | P% | S% | N% | |
| min. | --- | --- | --- | 16.5 | 10.0 | --- | --- | --- |
| max. | 0.03 | 1.00 | 2.00 | 18.5 | 13.0 | 0.045 | 0.015 | 0.11 |
| 9.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||
| 10.Conditioning | dry or oiled | |||||||
| 11.Delivery time | Stock within a short time or 35 days. | |||||||
| China | Japan | U.S. | Germany | Hardness |
| 0Cr19Ni12Mo2 | SUS316L | AISI316L | 1.4404 | HRC 25-39 |
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Application Of Stainless Steel Balls | ||||
| AISI304, 304L, 316, 316L | strong anti-rust performance, can be in direct contact with neutral liquids. Special bearings, water pumps, valves, aerosols, dispensers, food machinery, medical, cosmetics and other fields. | |||
| AISI420, 420C, 440, 440C | precision bearings, auto parts, bicycles, mixers, slide rails, conveyor belts, skateboards, casters, valves, etc. | |||
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
