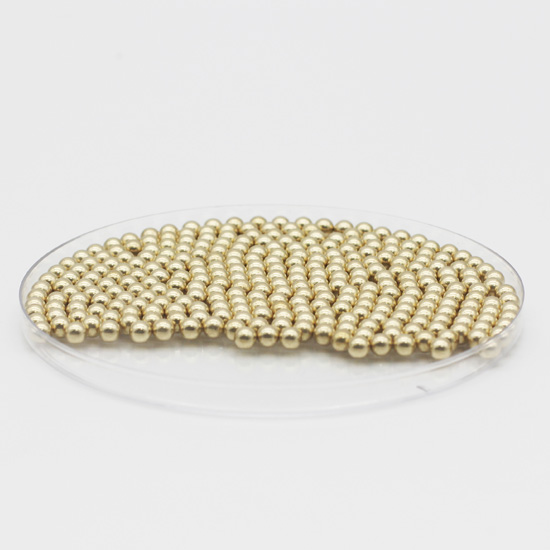

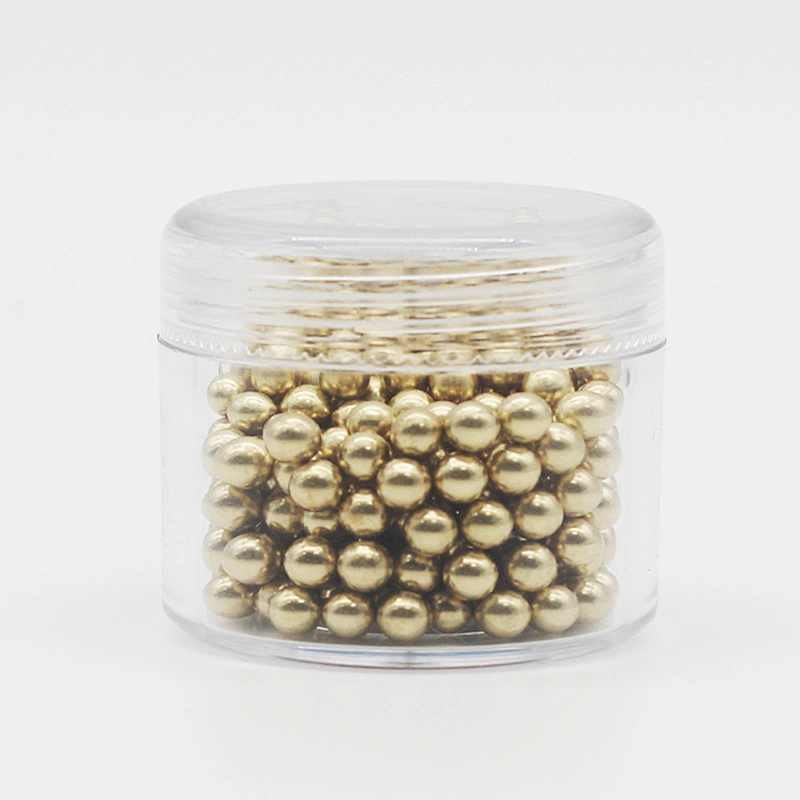

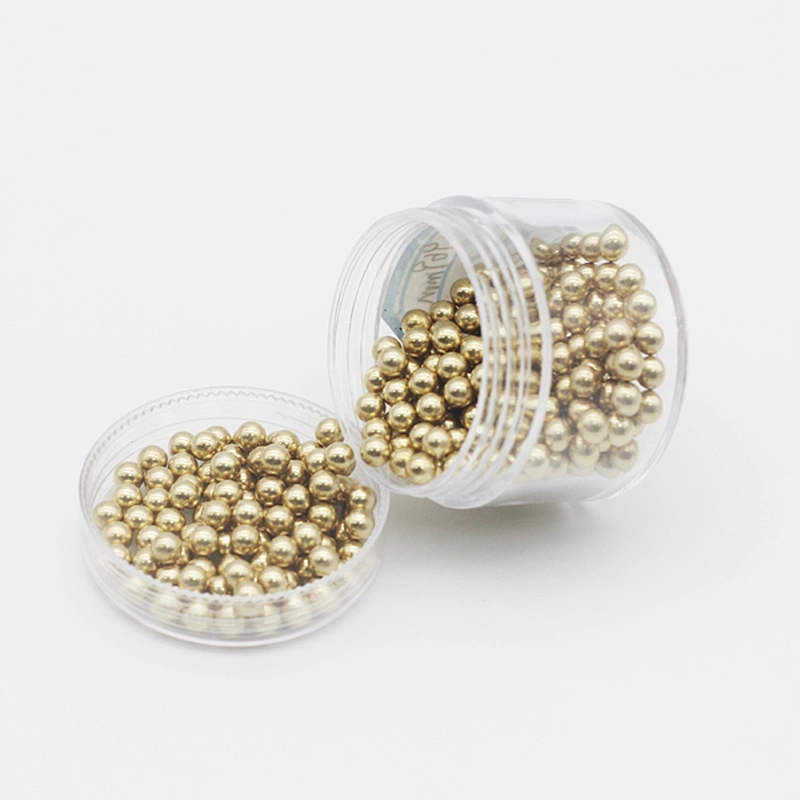

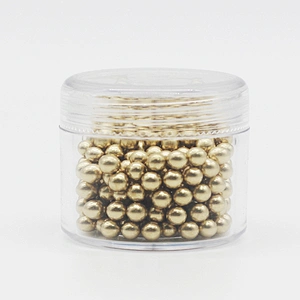

H62 H65 Brass Balls

Model NO.: H62/ H65/ H70
Delivery: EXW, FOB, FCA...
Minimum order quantity: 100 pieces
Supply Ability: 30000 pieces / Week
Country of Origin: China
Stock Time: 15 Days

Brass balls have good mechanical properties, good corrosion resistance and excellent electrical properties. They produce low friction.

Quantity:

Product Description

Brass is a non-ferrous material. Brass balls provide excellent resistance to corrosion by water. HUARI produce Brass balls for the automotive and electronic industries. Brass balls are resistant to corrosion caused by ambient air and seawater. Brass is resistant to the corrosion of petroleum products and alcohol, but may be unstable in acids and bases. Brass shows excellent conductivity, making it a popular material in the electronic field.

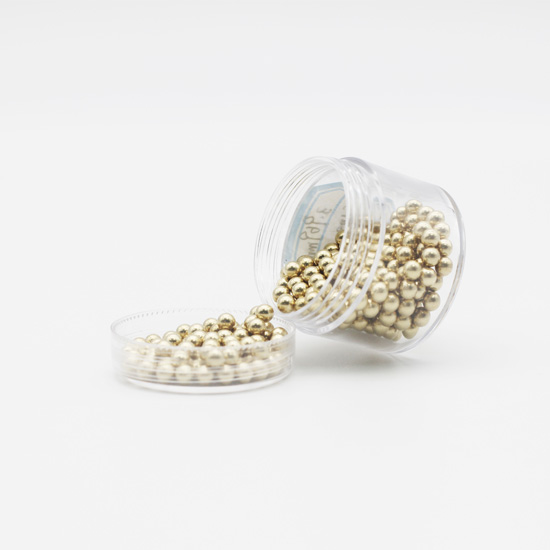

Brass Balls
1. Material		H62/ H65/ H70
2. Size Range		1mm-40mm
3. Grade		G100-1000
4. Hardness		75-87HRC
5. Characteristic		(a)Good corrosion resistance in ambient air and sea water (b)Unstable in acid and alkalis
6. Magnetic		Nearly Non-magnetic
7. Application		Special valves, industrial pumps and valves, electronic devices, safety switches, heating units, appliances, furniture rails. They are used in the automotive, electronic and petrochemical industry.
8.Packing		Standard: 10kg or 20kg per carton, 1 ton per pallet or as customer required
9.Conditioning		dry
10.Delivery time		Stock within a short time or 35 days.

ITA	USA	GER	FRA	UK	RUS	CHN	JAP
P-CuZn40	C28000	2.0360	CuZn40	CZ109	L60	H62	C2800
P-CuZn35	C27000	2.0335	CuZn36	CZ107	L63	H65	C2700
P-CuZn30	C26000	2.0265	CuZn30	CZ106	L70	H70	C2600

Grade: G10 to G1000
Grade	ball diameter	spherical	surface	lot diameter	nomainal ball
	variation	deviation	roughness	variation	deviation tolerance
	Vdws	Sph	Ra	Vdwl	Tdn
	not over
	μm
10	0.25	0.25	0.02	0.5	*
16	0.4	0.4	0.025	0.8	*
20	0.5	0.5	0.032	1	*
24	0.6	0.6	0.04	1.2	*
28	0.7	0.7	0.05	1.4	*
40	1	1	0.06	2	*
60	1.5	1.5	0.08	3	*
100	2.5	2.5	0.1	5	±12.5
200	5	5	0.15	10	±25
500	12.5	12.5	*	25	±50
1000	25	25	*	50	±125
