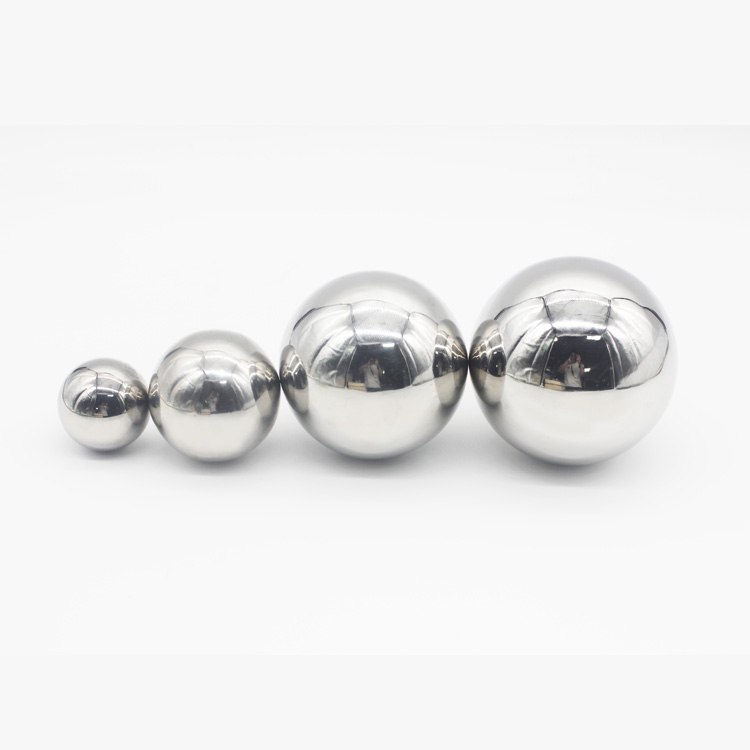

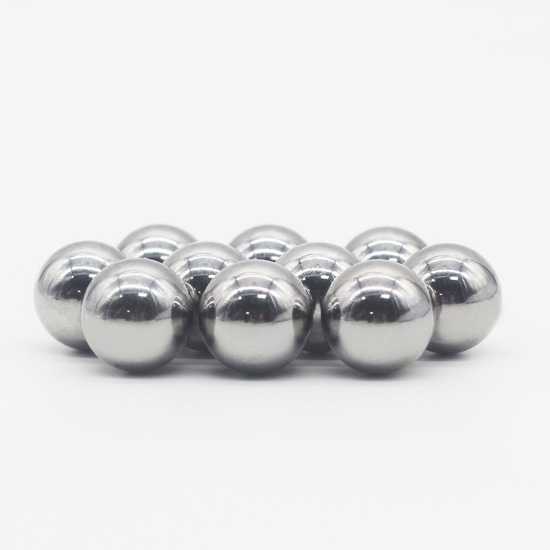

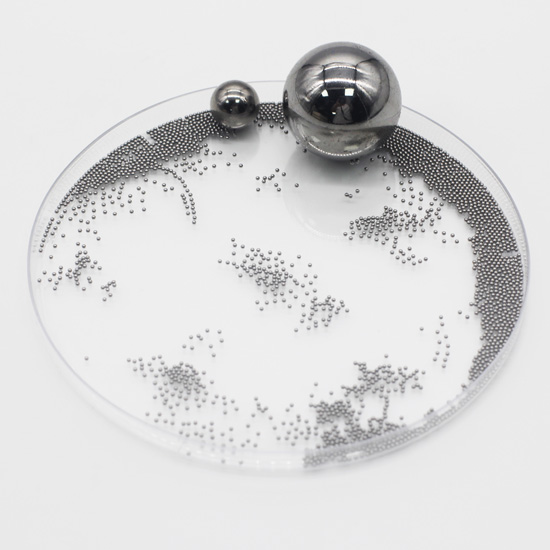

Bearing steel balls are made of bearing-grade alloy steel. Chrome steel is known as AISI52100 steel in the US, 100Cr6 in Europe, SUJ-2 in Japan, and GCr15 in China.
| Chrome bearing steel balls | ||||||||||
| 1. Material | AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505 | |||||||||
| 2. Size Range | 0.6mm-180mm | |||||||||
| 3. Grade | G10-1000 | |||||||||
| 4. Hardness | 58-65 HRC | |||||||||
| 5. Characteristic | (a)Mainly used in bearings (b)Good hardness (c)Good resistance to deformation with excellent wear resistance (d)Low corrosion | |||||||||
| 6. Magnetic | Yes | |||||||||
| 7. Application | Ball bearings, bicycles, automobile industry | |||||||||
| 8. Chemical composition | ||||||||||
| C% | Si% | Mn% | S% | P% | Cr% | Mo% | Cu% | Al% | O% | |
| min. | 0.93 | 0.15 | 0.25 | --- | --- | 1.35 | --- | --- | --- | --- |
| max. | 1.05 | 0.35 | 0.45 | 0.015 | 0.025 | 1.65 | 0.1 | 0.3 | 0.05 | 0.0015 |
| 9.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
| 10.Conditioning | dry or oiled | |||||||||
| 11.Delivery time | Stock within a short time or 35 days. | |||||||||
| ITA | USA | GER | FRA | UK | RUS | CHN | JAP |
| 100Cr6 | 52100 | 1.3505 | 100C6 | 534A99 | 9Ch1 | GCr15 | SUJ2 |
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
