Silicon carbide (SiC) is a lightweight ceramic material with high strength properties comparable to diamond. It has excellent thermal conductivity, low thermal expansion, and is resistant to corrosion from acids. Silicon carbide is an excellent ceramic material for applications requiring good erosion and abrasive resistance. Consequently, it is useful in a variety of applications including spray nozzles, shot blast nozzles and cyclone components. We produce sintered SiC balls, reaction bonded SiC balls and recrystallized SiC balls. Our recrystallized SiC products have a high purity, while our reaction bonded and sintered silicon carbide balls have a high mechanical strength. Our silicon carbide balls possess good wearability,a low thermal expansion coefficient, extreme corrosion resistance, high hardness and self-lubricating properties.

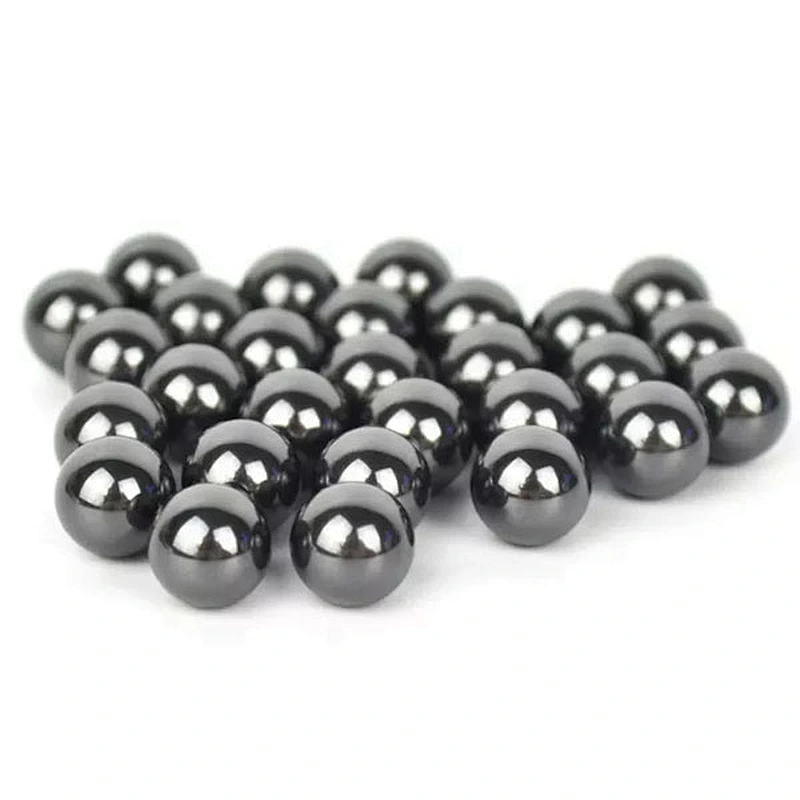

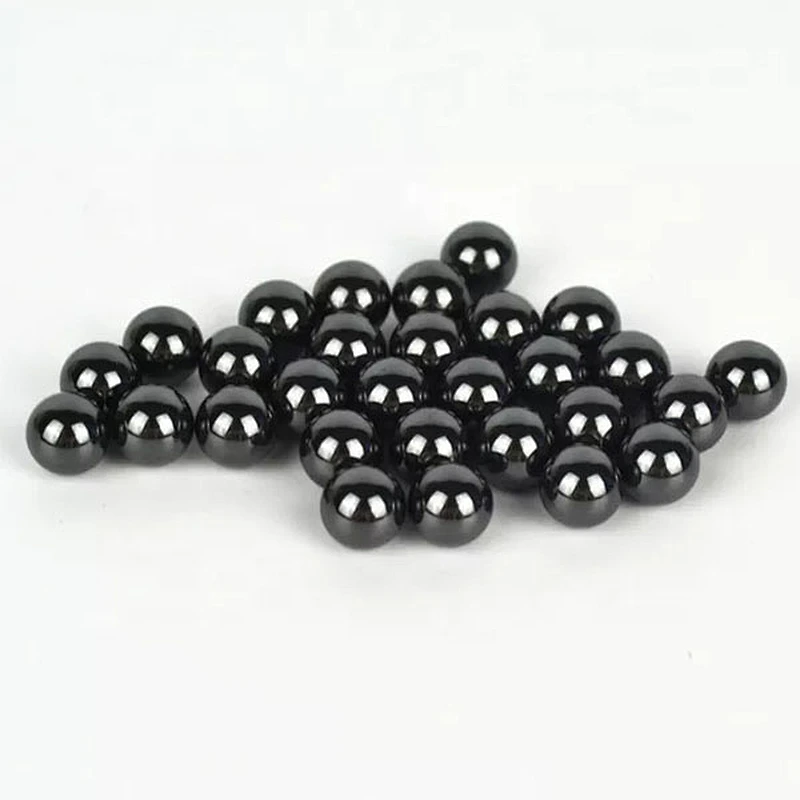

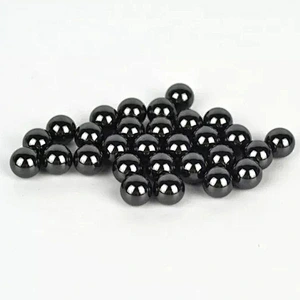

SiC Silicon Carbide Balls
1. Material
SiC Silicon Carbide
2. Specifications
φ0.5mm-φ50mm
3. Hardness
HRC85-90 HV: above 2100
4. Density
3.1g/cm3
5. Performance
Silicon carbide ceramic balls have stable performance, and silicon nitride has good overall performance. Compared with steel, its mass is lighter than steel, its friction coefficient is smaller, its motion performance is better, its elastic modulus is 50% larger than that of steel, its thermal expansion coefficient is smaller than 25% of that of steel, it can maintain high strength and hardness before 1000℃ under high temperature, and it is resistant to corrosion. No rust, non-magnetic, can work without oil lubrication.
6. Application
Including Special bearings and pumps, electric switches and sensors, medical instruments. They are used in automotive, aviation and aerospace, naval, petroleum, chemical and electronic industry. Spray nozzles, shot blast nozzles and cyclone components.
SiC silicon ceramic balls have good mechanical and stiffness properties, good corrosion resistance and wear resistance. They are electrical conductors and are suitable for high temperature applications.
SiC Silicon Carbide Balls
SiC Silicon Carbide
0.00~0.00
SiC silicon ceramic balls have good mechanical and stiffness properties, good corrosion resistance and wear resistance. They are electrical conductors and are suitable for high temperature applications.
