Silicon nitride (Si3N4) ceramic balls are formed from a new material suitable for applications where high speeds, high loads and extreme temperatures are factors. The long life and the need for minimal lubrication make this material suitable for extreme applications. Silicon nitride is a non-magentic, non-porous, non-corrosive, and lighter than steel material. Silicon nitride balls are harder than steel, allowing them to withstand the harshest environments. Ceramic balls are virtually frictionless because they are non-porous, which gives them the ability to spin faster than steel balls.

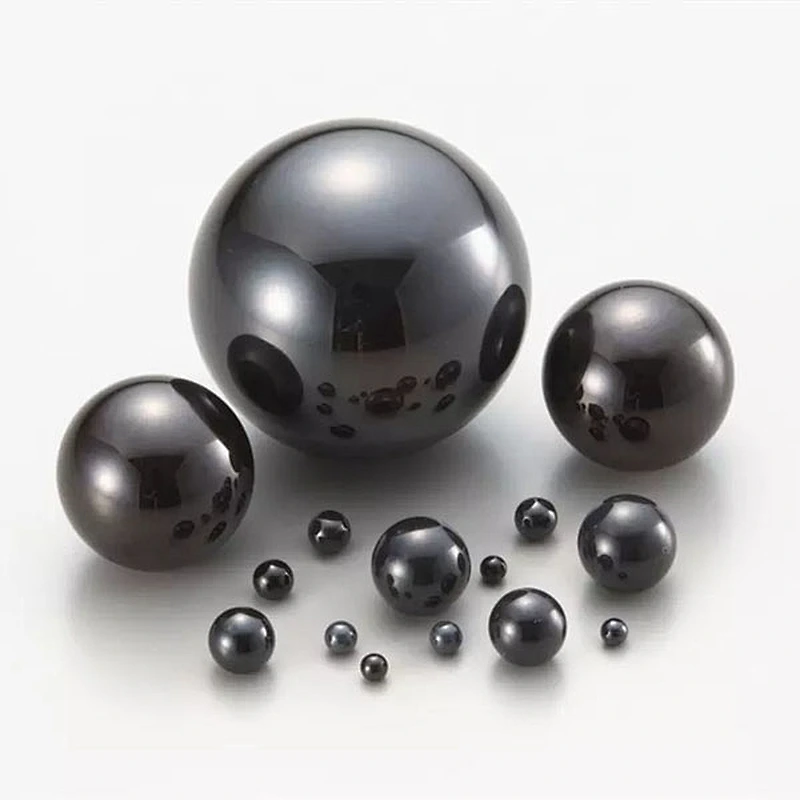

Si3N4 Silicon Nitride Ceramic Balls
1. Material
Si3N4
2. Specifications
φ0.4mm-φ100mm
3. Hardness
HRC75-80、HV:1300-1600
4. Density
3.2g/cm3
5. Performance
1.59% lighter than steel balls, which means less centrifugal force and wears less grooves at high speeds and accelerations 2. The elastic modulus is 44% larger, which means less deformation under load. 3. Smaller friction coefficient. 4. The linear expansion coefficient of silicon nitride ceramic ball is 3.2×10-6/K, which is almost 1/4 of bearing steel, and can endure high temperature. 5.Excellent surface finish can be achieved, Ra can be 4~6. 6. Can endure high temperature, high hardness and strength up to 1050 ℃.
6. Application
Special bearings, high-speed bearings, under vacuum pumps, compressors, centrifugal pumps, shafts/mandril, recirculating balls, flow meters, measurement instruments. They are used in aerospace and military industry.
5.Packing
OPP bag, Vacuum packing, Carton, drum, wooden case with foam; Custom packing
Silicon nitride balls can be used in helicopter rotors, aircraft turbines, high speed mixers for chemical reaction vessels, machine charges, dental drills and vacuum pumps. It is designed for high precision applications. A popular choice for bearing designers and other precision product applications. Silicon nitride balls are non-corrosive, anti-magnetic, and perform well in low noise.

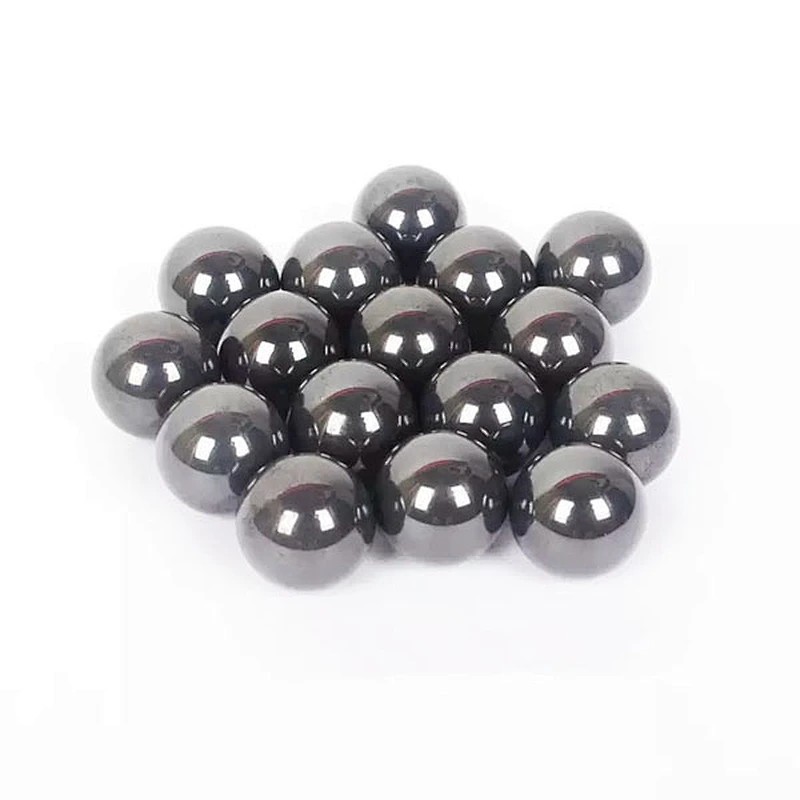

Si3N4 Silicon Nitride Ceramic Balls
Si3N4 Silicon Nitride
0.00~0.00
Silicon nitride balls can be used in helicopter rotors, aircraft turbines, high speed mixers for chemical reaction vessels, machine charges, dental drills and vacuum pumps. It is designed for high precision applications. A popular choice for bearing designers and other precision product applications. Silicon nitride balls are non-corrosive, anti-magnetic, and perform well in low noise.
