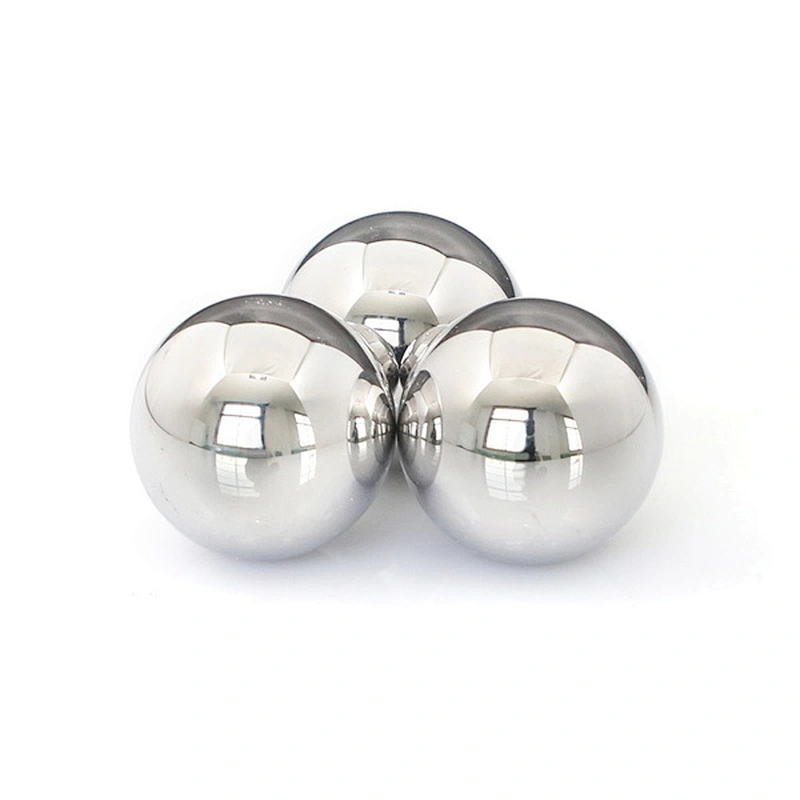

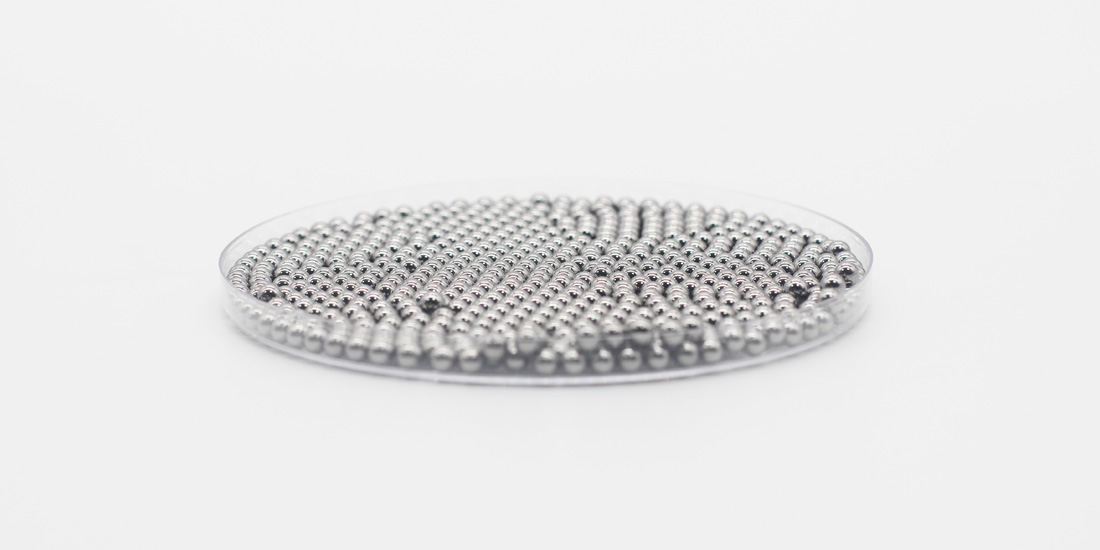

Carbon steel balls are an economical alternative to through-hardened precision balls. High carbon steel balls are through-hardened. They have a superior resistance to stress and wear. They have similar properties in hardness and precision to chrome steel balls but with a better price. So, they are often used as a replacement for chrome steel balls when users want a cheaper alternative.
| High Carbon Steel Balls | ||||||||||
| 1. Material | AISI1086/ C85/ 1.0616/ EN8-9/ Wks 1.1269 | |||||||||
| 2. Size Range | 1mm-180mm | |||||||||
| 3. Grade | G40-1000 | |||||||||
| 4. Hardness | 60 min. HRC (Surface-hardend) | |||||||||
| 5. Characteristic | (a)Core-hardened (b)Low resistance to corrosive attack (c)Higher Load and longer life than low carbon steel ball | |||||||||
| 6. Magnetic | Yes | |||||||||
| 7. Application | Low precision bearings, furniture bearings, bicycle and automotive components, agitators, sliding rails, drawer rails, skates, roller conveyors, castors, locks, bearing units, polishing and milling machines. | |||||||||
| 8. Chemical composition | ||||||||||
| C% | Si% | Mn% | Cr% | Ni% | Mo% | P% | S% | Al% | O% | |
| min. | 0.83 | 0.10 | 0.50 | --- | --- | --- | --- | --- | --- | |
| max. | 0.83 | 0.30 | 0.80 | 0.15 | 0.2 | 0.05 | 0.035 | 0.035 | 0.01 | 0.25 |
| 9.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
| 10.Conditioning | dry or oiled | |||||||||
| 11.Delivery time | Stock within a short time or 35 days. | |||||||||
| ITA | USA | GER | FRA | UK | RUS | CHN | JAP |
| C90 | 1085 | 1.0616 | XC90 | C85S | 85 (A) | 82B | SWRH87B |
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
