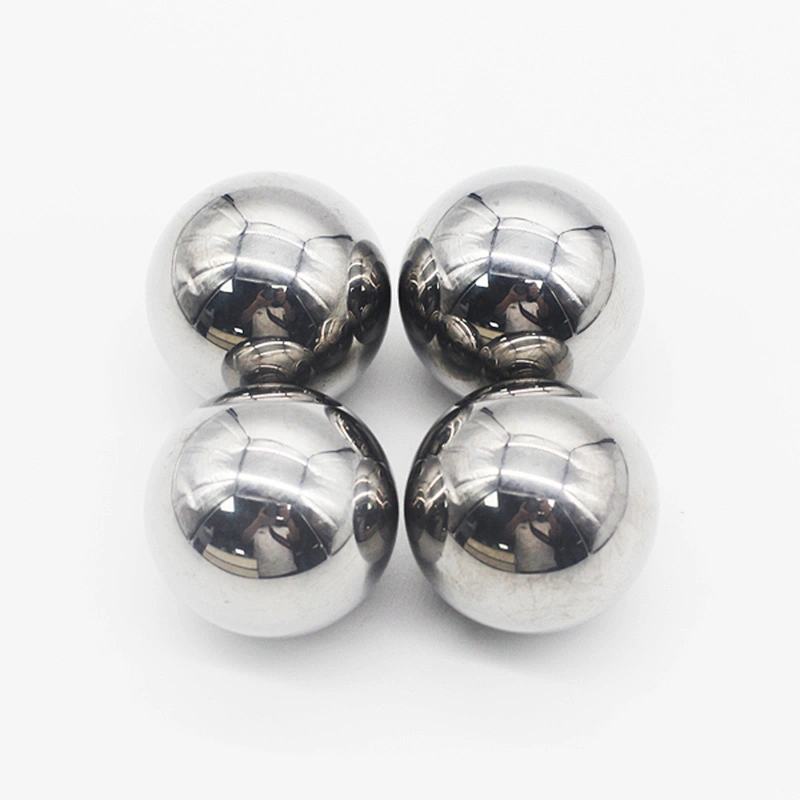

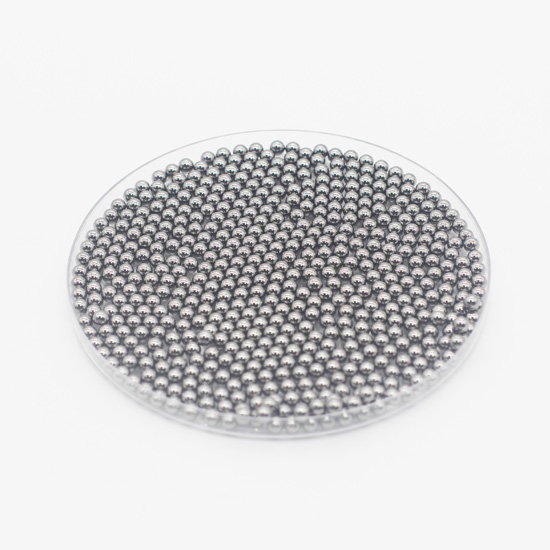

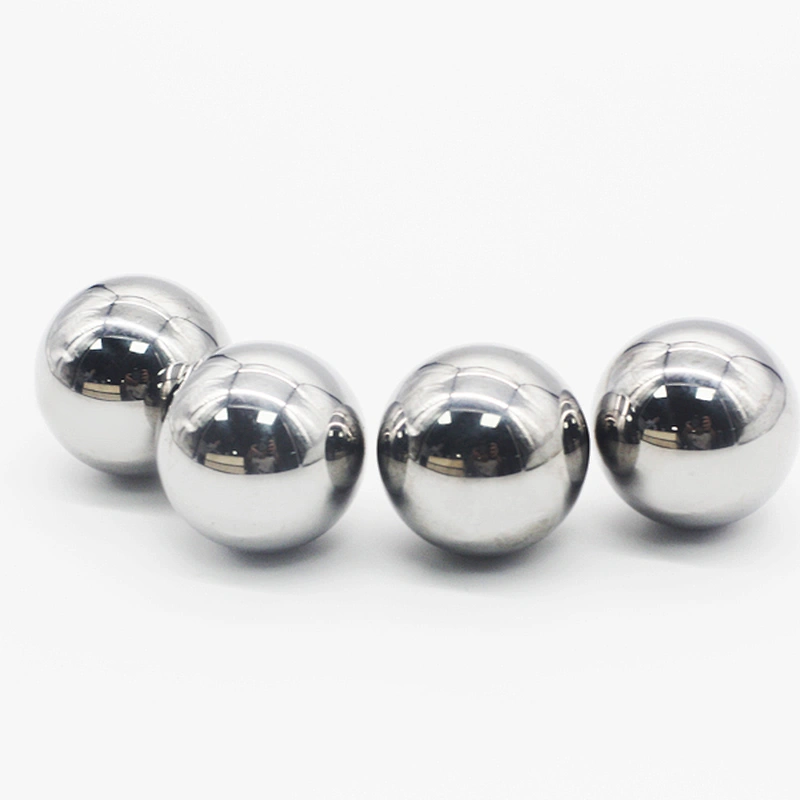

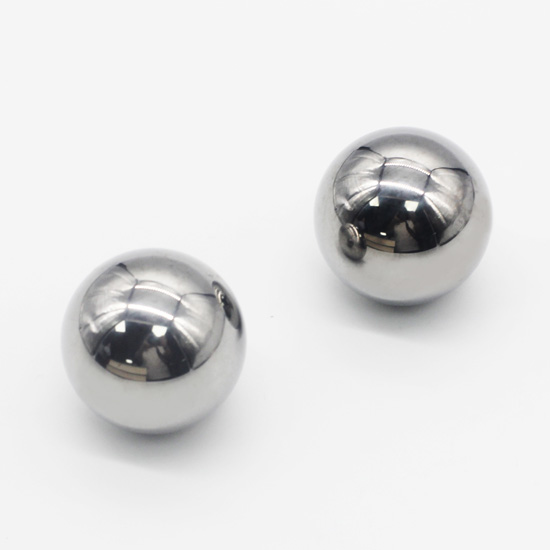

Low carbon steel balls are often referred to as carbon steel balls made of AISI1010-1015. They can be casehardened with low core hardness. They are widely used in automotive applications, semi-precision bearings, and commercial applications such as casters, locks, and drawer slides. Other applications for low carbon steel balls include locks, bicycles, roller skates, slides, trolleys, and conveyors.
| Low Carbon Steel Balls | ||||||||||
| 1. Material | AISI1010/ AISI1015/ C15/ 1.0413/ JIS SWRM 12/ EN32 ASTM A/29 | |||||||||
| 2. Size Range | 1mm-180mm | |||||||||
| 3. Grade | G40-1000 | |||||||||
| 4. Hardness | 60 min. HRC (Surface-hardend) | |||||||||
| 5. Characteristic | (a)Casehardened surface balls and low hardness core (b)superficial hardness (c)Low resistance to corrosive attack | |||||||||
| 6. Magnetic | Yes | |||||||||
| 7. Application | Low quality bearing, oiler, roller, sliding block… | |||||||||
| 8. Chemical composition | ||||||||||
| C% | Si% | Mn% | Cr% | Ni% | Mo% | P% | S% | Al% | O% | |
| min. | 0.12 | --- | 0.30 | --- | --- | --- | --- | --- | --- | |
| max. | 0.17 | 0.30 | 0.60 | 0.20 | 0.25 | 0.05 | 0.035 | 0.035 | 0.01 | 0.30 |
| 9.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
| 10.Conditioning | dry or oiled | |||||||||
| 11.Delivery time | Stock within a short time or 35 days. | |||||||||
| ITA | USA | GER | FRA | UK | RUS | CHN | JAP |
| C10 | 1010 | 1.1121 | CC10 | 040A10 | 10 | 10 | S10C |
| C15 | 1015 | 1.1141 | XC12 | 080M15 | 15 | 15 | S15C |
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
Send Message
Related Products

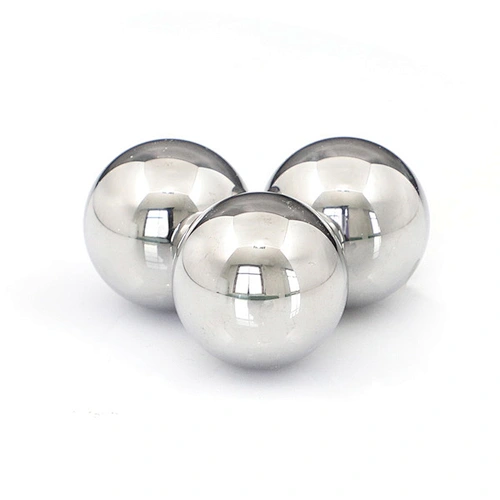

Model NO. AISI 1010/ 1015

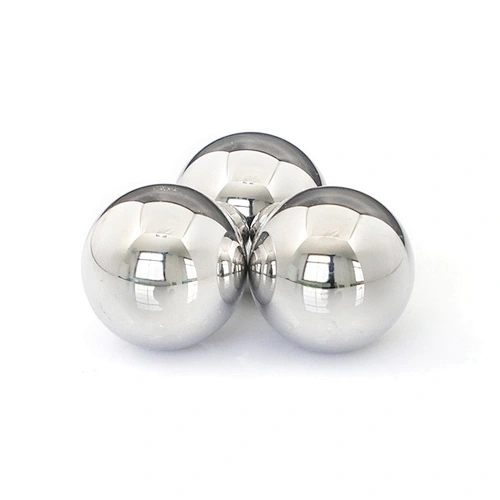

Model NO. AISI1086/ C85/ 1.0616/ EN8-9/ Wks 1.1269
