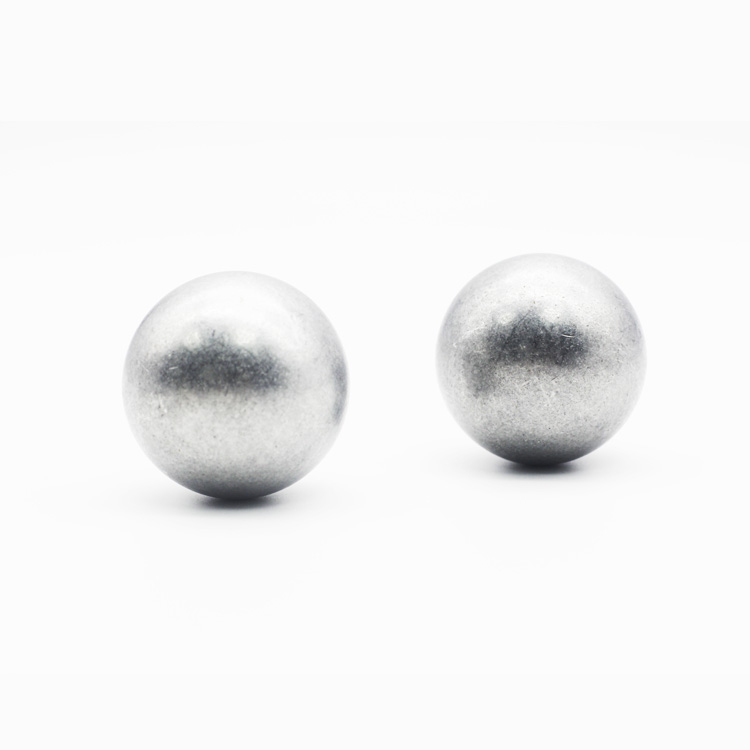

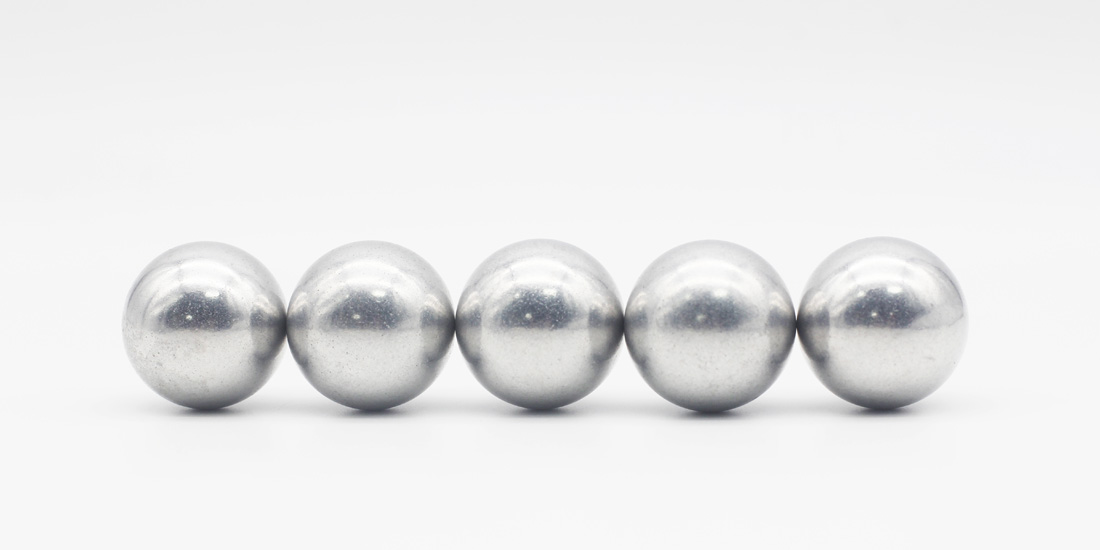

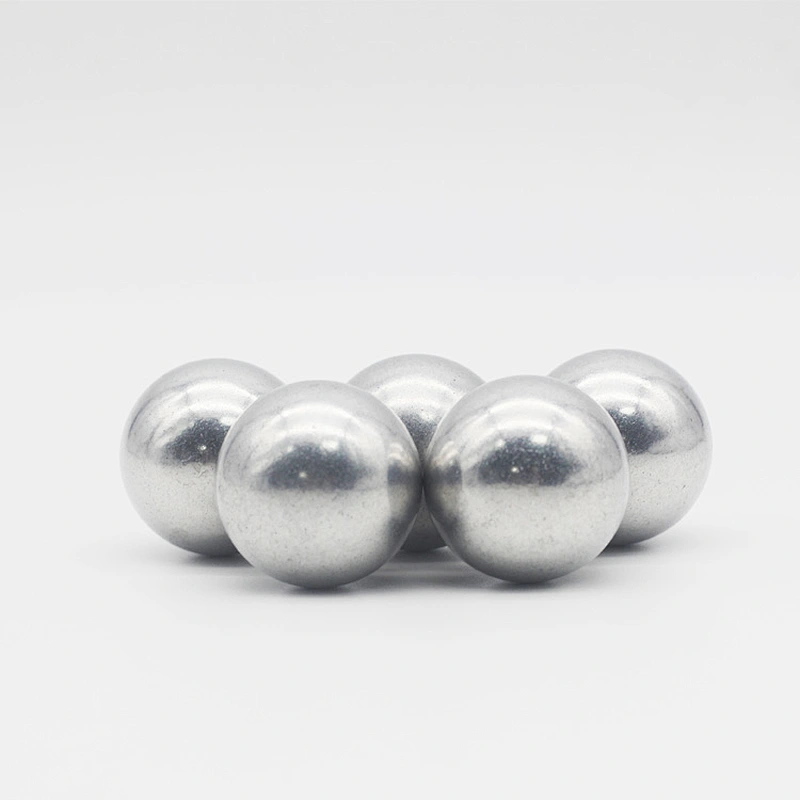

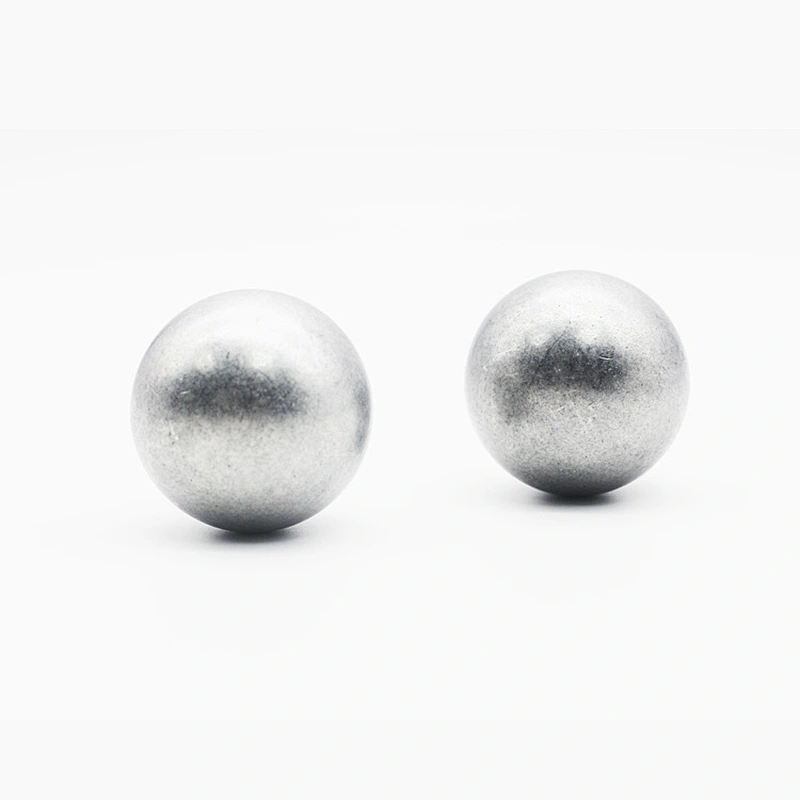

1060 1070 1100 aluminum balls
1060 1070 1100 series alloys provide better corrosion resistance thanks to their purity. Good resistance on almost all natural waters. All aluminium alloys are subjected to pitting corrosion in presence of chlorides.
| 1060 1070 1100 Aluminum Balls | ||||||||||
| 1. Material | 1060/ 1070/ 1100 | |||||||||
| 2. Size Range | 1mm-40mm | |||||||||
| 3. Grade | G500-1000 | |||||||||
| 4. Hardness | 58-62 HRC | |||||||||
| 5. Characteristic | (a)Low weight, good electrical and heat conductivity (b)High corrosion resistance but low mechanical strength (c)Easlily machined, drilled and tapped | |||||||||
| 6. Magnetic | Non-magnetic | |||||||||
| 7. Application | Special bearings and valves, sealing elements (crushed balls), they are used in automotive industry (safety devices), aviation and aerospace industry, electronic industry, welding processes. | |||||||||
| 8.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
| 9.Conditioning | dry | |||||||||
| 10.Delivery time | Stock within a short time or 35 days. | |||||||||
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
