Aluminum balls are very light and have excellent electrical and thermal conductivity. Aluminum has strong corrosion resistance but low mechanical strength. 6061 aluminum ball has good corrosion resistance and wear resistance, and the surface finish is very good. Due to the chemical composition of Si and Mg, 6061 alloy can be heat treated to improve the hardness.

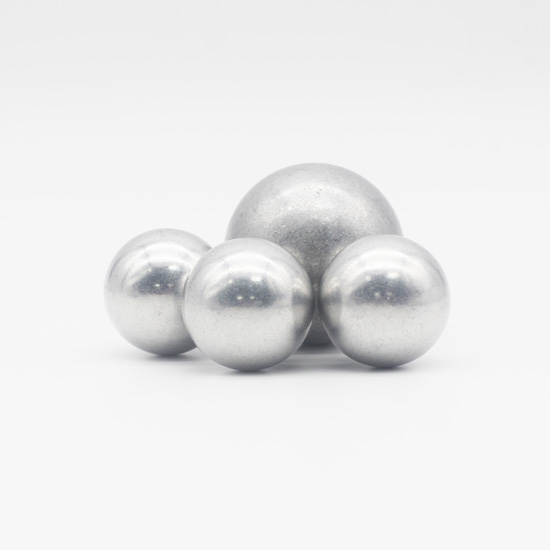

| 6061 Aluminum Balls | ||||||||||
| 1. Material | 6061 | |||||||||
| 2. Size Range | 1mm-40mm | |||||||||
| 3. Grade | G500-1000 | |||||||||
| 4. Hardness | 58-62 HRC | |||||||||
| 5. Characteristic | (a)Low weight, good electrical and heat conductivity (b)High corrosion resistance but low mechanical strength (c)Easlily machined, drilled and tapped | |||||||||
| 6. Magnetic | Non-magnetic | |||||||||
| 7. Application | Special bearings and valves, they are used in automotive industry (safety devices), shipbuilding industry, aviation and aerospace industry, electronic industry, welding processes. | |||||||||
| 8.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
| 9.Conditioning | dry | |||||||||
| 10.Delivery time | Stock within a short time or 35 days. | |||||||||
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
