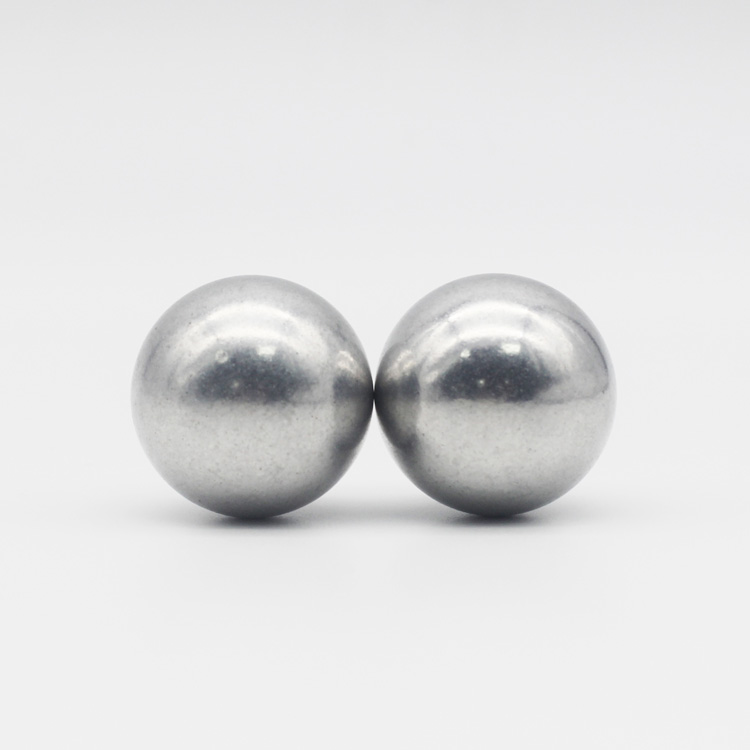

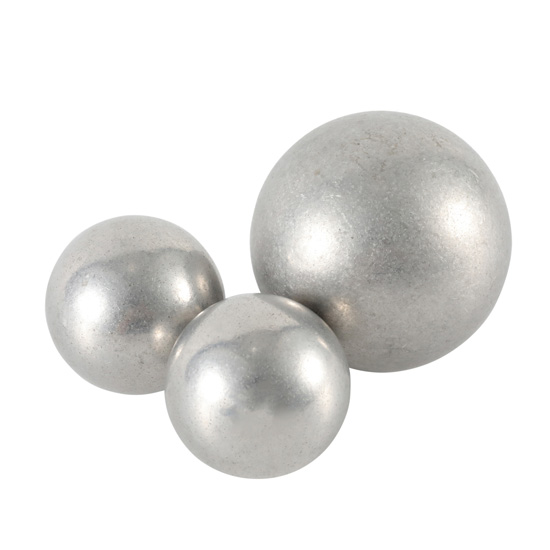

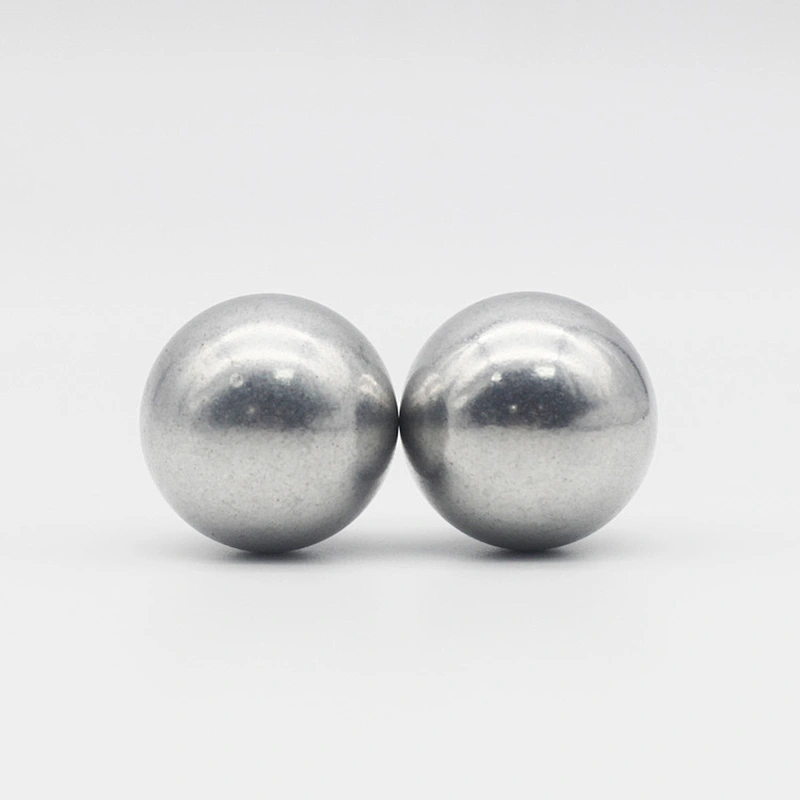

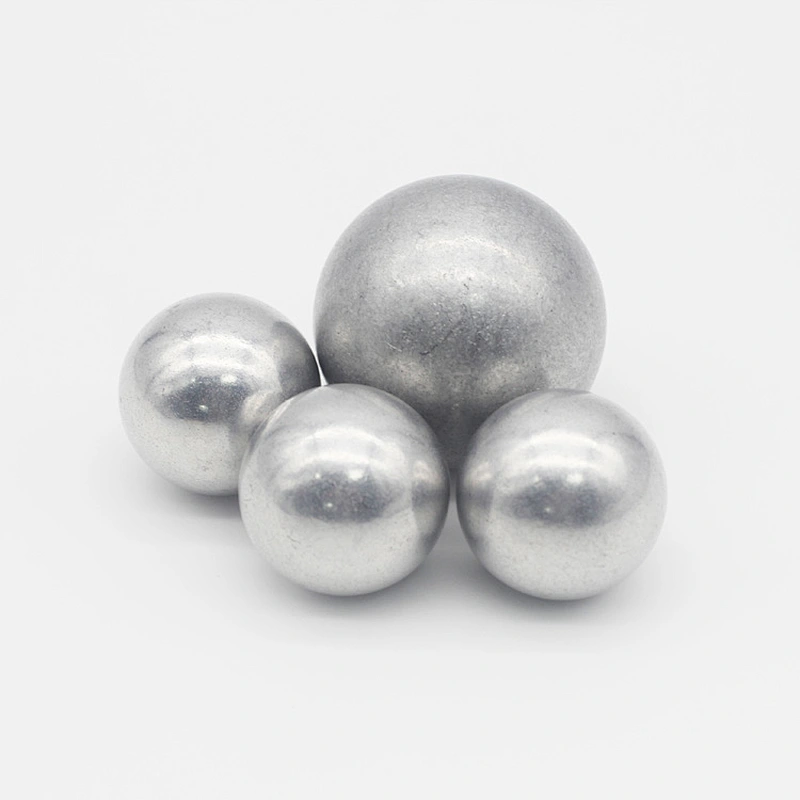

5050 aluminum balls/ aluminum sphere
Light balls featured by good corrosion and wear resistance, very good surface finishing. 5050 alloys feature a good workability.There are many applications of aluminum balls, and they are most commonly applied in the stud welding process or the electrical industry. Because they are easy to install and use, they are also very popular in automated machinery.
| 5050 5056 Aluminum Balls | ||||||||||
| 1. Material | 5050/ 5056 | |||||||||
| 2. Size Range | 1mm-40mm | |||||||||
| 3. Grade | G500-1000 | |||||||||
| 4. Hardness | 58-62 HRC | |||||||||
| 5. Characteristic | (a)Low weight, good electrical and heat conductivity (b)High corrosion resistance but low mechanical strength (c)Easlily machined, drilled and tapped | |||||||||
| 6. Magnetic | Non-magnetic | |||||||||
| 7. Application | Special bearings and valves, they are used in automotive industry (safety devices), aviation and aerospace industry, electronic industry, welding processes. | |||||||||
| 8.Packing | Standard: 10kg or 20kg per carton,1 ton per pallet or as customer required | |||||||||
| 9.Conditioning | dry | |||||||||
| 10.Delivery time | Stock within a short time or 35 days. | |||||||||
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
| Standard Packing | |||
 | |||
| More packing methods, please contact us. |
Send Message
Related Products
Model NO. G1000

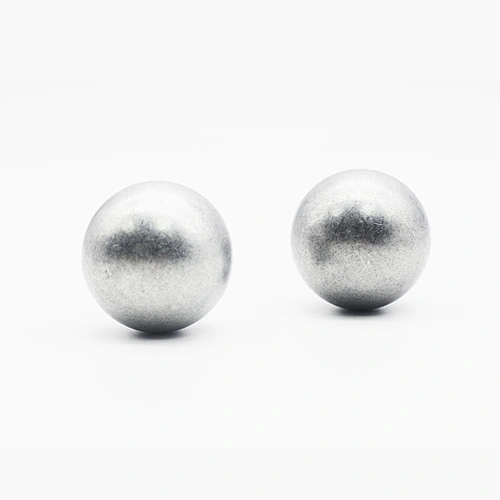

Model NO. 1060/ 1070/ 1100

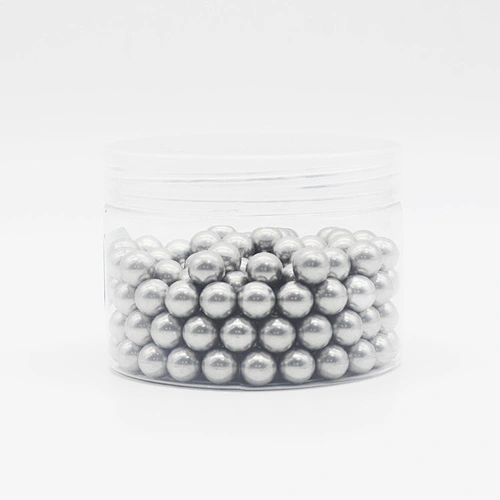

Model NO. 6061
